Case Erector Case Sealer Case Packer Palletizing Wrapping Machines

CE Series

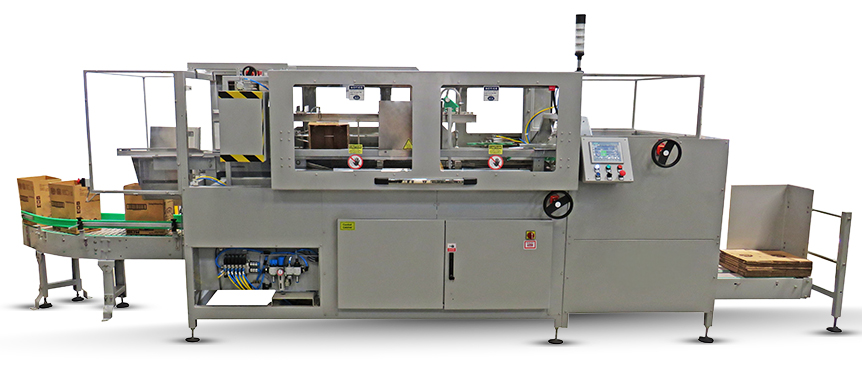

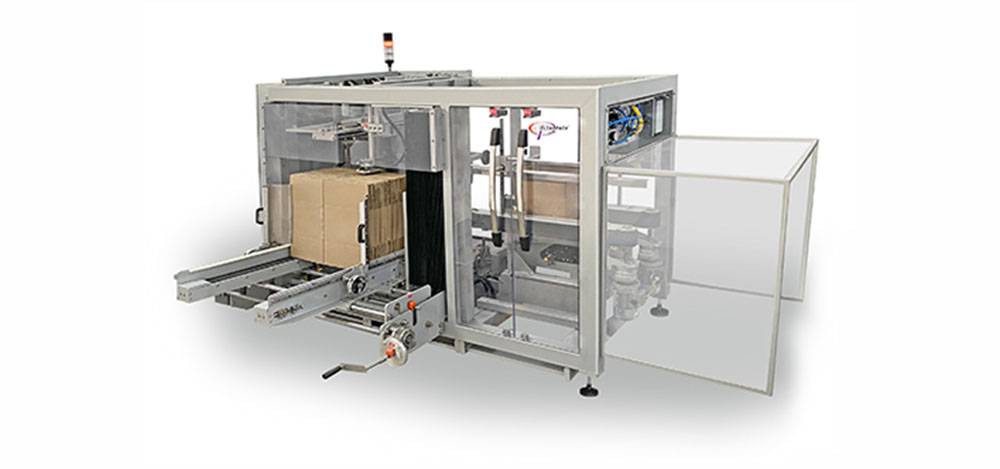

The Clearpack case erectors are not light weight but heavy-duty Power houses. Their robust body and reliable mechanisms allow case forming and case sealing operations upto speeds of 35 CPM. They adopt the features of high-speed case erectors into a compact and versatile unit, ultimately providing you with a machine that meets the most demanding production requirements.

DOWNLOAD BROCHURE

Features

Conveyorized horizontal blank magazine
Pick up case blank on the top
Separate operation from case erecting
Big Bellow style suction cup for top and 2-3 suction cups at bottom
Hold the bottom flap secure while erecting from Major flap above
Adjustable compression ram
CE 30 comes with Vacuum Pump as a standard
Option of ‘Diamond Head’ on Robatech Hot Glue unit
No change parts. All adjustments scaled or with Digital read out

Technical Specification

MODEL	CE 15	CE 30
Speed	15 Cases per minute	Upto 30 cases per minute
Sealing	Tape hot / melt	Tape hot / melt
Min. Case Dimension (LxWxH) mm	180 X 150 X 105	180 X 180 X 105
Max. Case Dimension (LxWxH) mm	575 X 475 X 380	575 X 475 X 380
