Sweep Type Palletizer

This high speed Palletizer for cases, trays or totes has features for ultra-smooth product transit, perfect load positioning, and rapid product changeover. Its low level construction offers the freedom of floor level operation, and a clean, open profile that ensures easy access. Modular designs provide total flexibility for palletising production requirements today and in the future

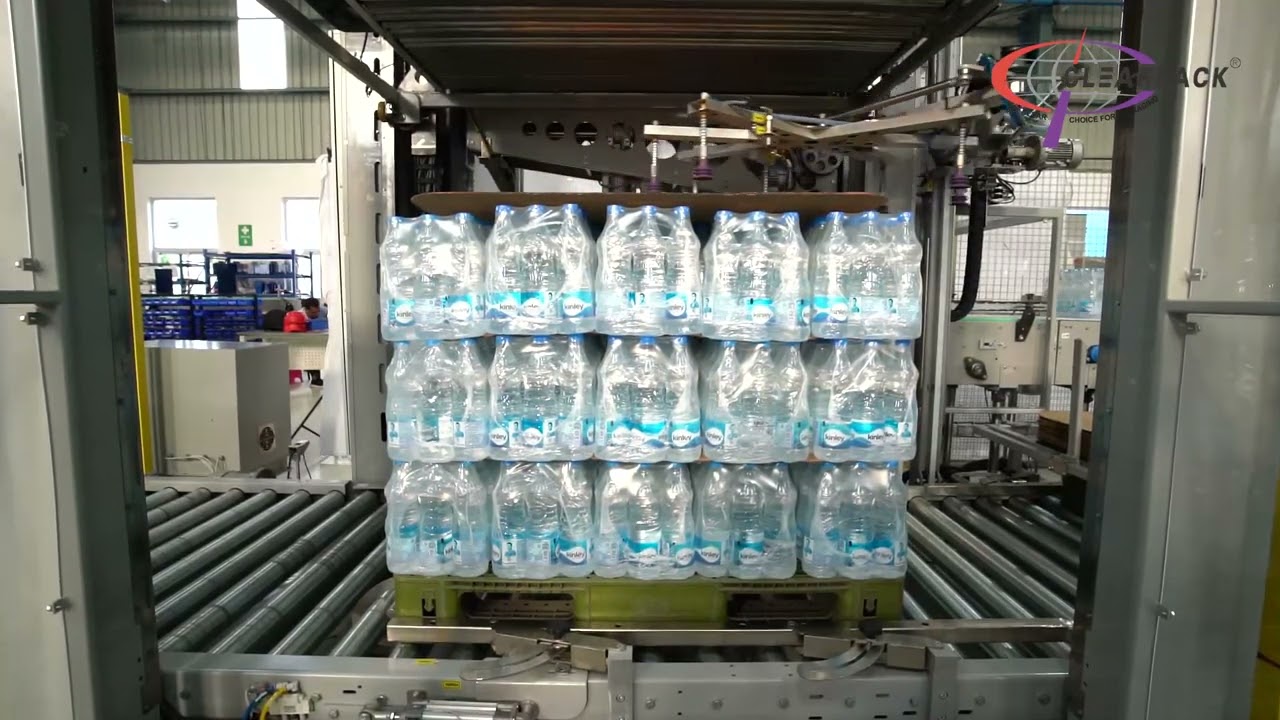

Machine in Action

Features

High Performance Palletising Features

Heavy steel frame construction - 7 gauge, 3/16" steel, welded and bolted for strength
Automatic in-feed timing belt
Turning post and powered roller case orienter
Overhead case pusher bar allows case feed to continue during row indexing
Stainless steel, reinforced elevator table with gravity design and tapered stripper plate
Maximum tier weight 650 lbs

Features for Reliable Palletising Operation

Counter-weighted elevator table eliminates drive motor stress
Adjustable layer retainer bar
Allen-Bradley PLC
IEC motor starters
Variable-frequency motor drives

Reduced Maintenance Features

Quick-disconnect non-contact sensing devices with LED indicators
Non-contact sensors monitor machine operation
Sealed bearings throughout
Touch-screen control for machine jog, diagnostics, troubleshooting and changeover settings
Elevated beacon fault light
Modem for remote diagnostics and new layer pattern programming
