Cap Inspection

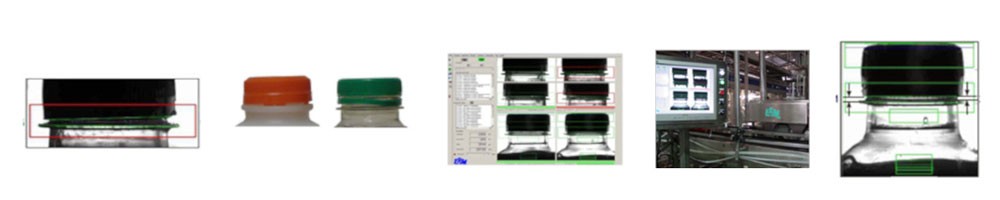

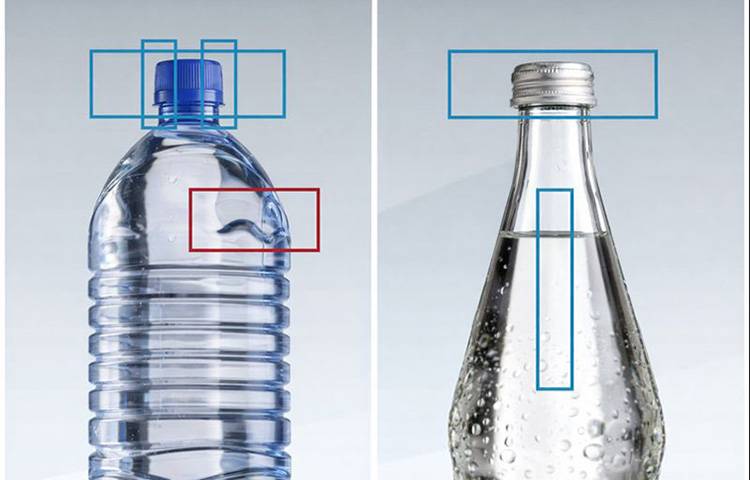

Complete turnkey installation in client’s production line for inspection of parameters such as Missing Cap, Cap alignment, Improper sealing, Squeezed & torn tamper evident ring, Gaps, Fill level. The system snaps 3 images of the cap as bottles passes through the inspection enclosure. This solves false accepts, which typically occur when using a single camera view. Measurements are taken at 6 different points, every 60 degrees.

DOWNLOAD BROCHURE

Machine in Action

Features

2 CCD B/W 1024*768 pixel cameras.
Backlighting system.
High speed operation.
Stainless steel component enclosure Easy installation over existing conveyor.
Real time statistics.
Container tracking with encoder.
Compact, silent and robust.
Low maintenance costs.
Easy format change over.
Good ROI.
Automatic height adjustment of inspection unit.
Intuitive parameter adjustment.
Management of rejection and alarms.
