Label Inspection

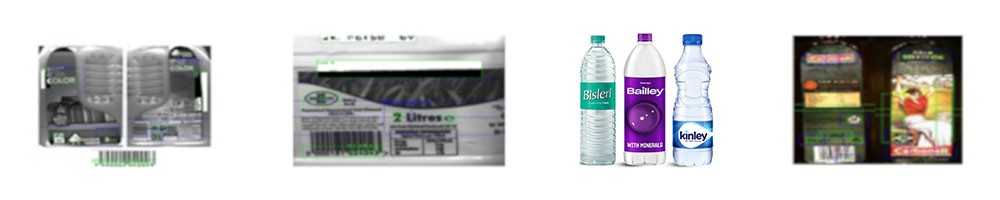

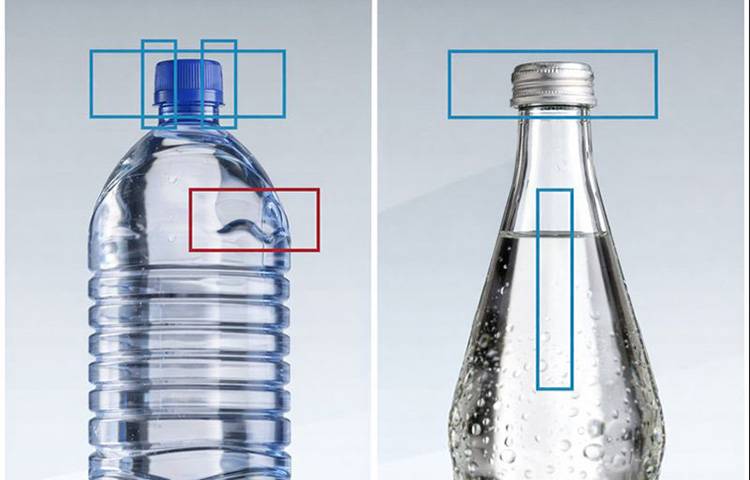

The system snaps 2 lateral (transversal) images as bottles pass through the inspection enclosure especially for oriented rectangular, triangular and oval containers. The inspection system is placed outside labeller over conveyor. Complete turnkey installation for inspection of missing labels, upside down labels, double labels, skew labels, flagging and partially detached labels, torn label edges and raised corners, horizontal relative position of labels, vertical alignments and centering of labels and cap, label identification, shoulder label tilts, verification of barcode digits, missing date code and lot code, fill level and closure presence, cap identification, etc.

DOWNLOAD BROCHURE

Machine in Action

Features

2 CCD B/W 1,3 pixel cameras.
Frontlight LED adjustable illumination.
Robust stainless steel construction.
Repositioning algorithms.
Encoder container tracking.
High speed operation.
Compact inspection tunnel with safety glass.
Simple and easy product changeover.
Intuitive parameter adjustment.
Production statistics.
Low maintenance costs, occasional cleaning of safety glass.
Integration with external inspections (barcode reader, security tag).
Built-in management of reject signals.
Possibility of structural modification for 3-face-sized label.
Possibility of integrating fill level control.
